Prodej pouze v celém balení tj.10ks
Technická specifikace v tabulce viz. níže

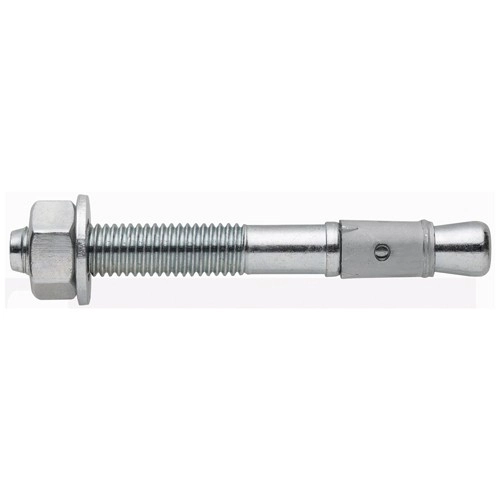

ETA - Evropské technické schválení Spit Fix II BZP splňuje možnost ETA 7, jehož bylo dosaženo v betonu bez trhlin.
Eurokód | Závit | Délka | Vrtání mm | Maximální fixace tloušťka materiálu | Kotevní hloubka | Vrtací hloubka | Utahovací moment Nm | Množství v balení |
057450 | M8 | 55 mm | 8 | 5 | 30-40 | 50-60 | 15 | 100 |
057451 | M8 | 70 mm | 8 | 20 | 30-40 | 50-60 | 15 | 100 |
057452 | M8 | 90 mm | 8 | 40 | 30-40 | 50-60 | 15 | 50 |
057453 | M8 | 100 mm | 8 | 50 | 30-40 | 50-60 | 15 | 50 |
057454 | M8 | 115 mm | 8 | 65 | 30-40 | 50-60 | 15 | 50 |
057455 | M8 | 130 mm | 8 | 80 | 30-40 | 50-60 | 15 | 50 |
057456 | M8 | 160 mm | 8 | 110 | 30-40 | 50-60 | 15 | 50 |
057460 | M10 | 65 mm | 10 | 5 | 40-50 | 60-70 | 30 | 50 |
057461 | M10 | 75 mm | 10 | 15 | 40-50 | 60-70 | 30 | 50 |
057462 | M10 | 85 mm | 10 | 25 | 40-50 | 60-70 | 30 | 50 |
057463 | M10 | 95 mm | 10 | 36 | 40-50 | 60-70 | 30 | 50 |
057464 | M10 | 110 mm | 10 | 50 | 40-50 | 60-70 | 30 | 25 |
057465 | M10 | 125 mm | 10 | 65 | 40-50 | 60-70 | 30 | 25 |
057466 | M10 | 140 mm | 10 | 80 | 40-50 | 60-70 | 30 | 25 |
057467 | M10 | 160 mm | 10 | 100 | 40-50 | 60-70 | 30 | 25 |
057470 | M12 | 80 mm | 12 | 5 | 50-65 | 75-90 | 50 | 25 |
057471 | M12 | 100 mm | 12 | 25 | 50-65 | 75-90 | 50 | 25 |
057472 | M12 | 115 mm | 12 | 40 | 50-65 | 75-90 | 50 | 25 |
057473 | M12 | 125 mm | 12 | 50 | 50-65 | 75-90 | 50 | 25 |
057474 | M12 | 140 mm | 12 | 65 | 50-65 | 75-90 | 50 | 25 |
057475 | M12 | 160 mm | 12 | 85 | 50-65 | 75-90 | 50 | 25 |
057476 | M12 | 180 mm | 12 | 105 | 50-65 | 75-90 | 50 | 25 |
057477 | M12 | 220 mm | 12 | 145 | 50-65 | 75-90 | 50 | 20 |
057480 | M16 | 100 mm | 16 | 5 | 65-80 | 95-110 | 100 | 20 |
057481 | M16 | 125 mm | 16 | 30 | 65-80 | 95-110 | 100 | 20 |
057482 | M16 | 150 mm | 16 | 55 | 65-80 | 95-110 | 100 | 10 |
057483 | M16 | 170 mm | 16 | 75 | 65-80 | 95-110 | 100 | 10 |
057484 | M16 | 185 mm | 16 | 90 | 65-80 | 95-110 | 100 | 10 |
057490 | M20 | 125 mm | 20 | 10 | 75-100 | 110-135 | 160 | 10 |
057491 | M20 | 165 mm | 20 | 50 | 75-100 | 110-135 | 160 | 10 |
057492 | M20 | 220 mm | 20 | 105 | 75-100 | 110-135 | 160 | 10 |
Cenu kotev v případě většího odběru Vám zašleme na základě poptávky
